Grid Box Refurbish

Grid Box Repair Steps

~Remove all components and cabling.

~Inspect grid box for cracks and damage.

~Repair any cracks/damage, add GE recommended updates (if needed).

~Sandblast.

~Paint the grid box to customer specifications.

~Install new insulators and cabling.

~Refurbish the grid blower motors (using new bearings, brush holders, brushes, newly cleaned and baked armature, ground brush and mounts).

~Install refurbished diffusers, spacers and jam plates.

~Install grid resistors (new or used / customer specified).

~Install bus bars (with new cadmium plated fasteners and pusher bolts).

~Install refurbished grid blower motors (using new seals and mounts).

~Verify all connections and blower motor operation.

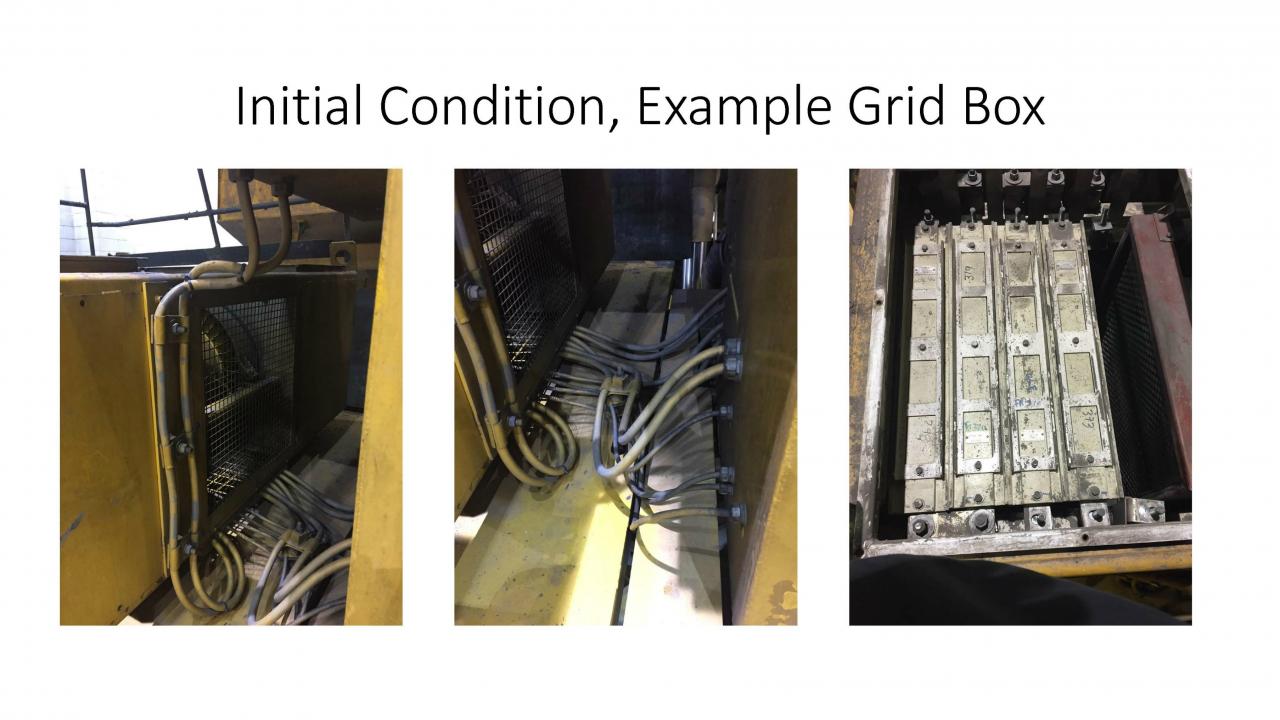

  • Initial Condition

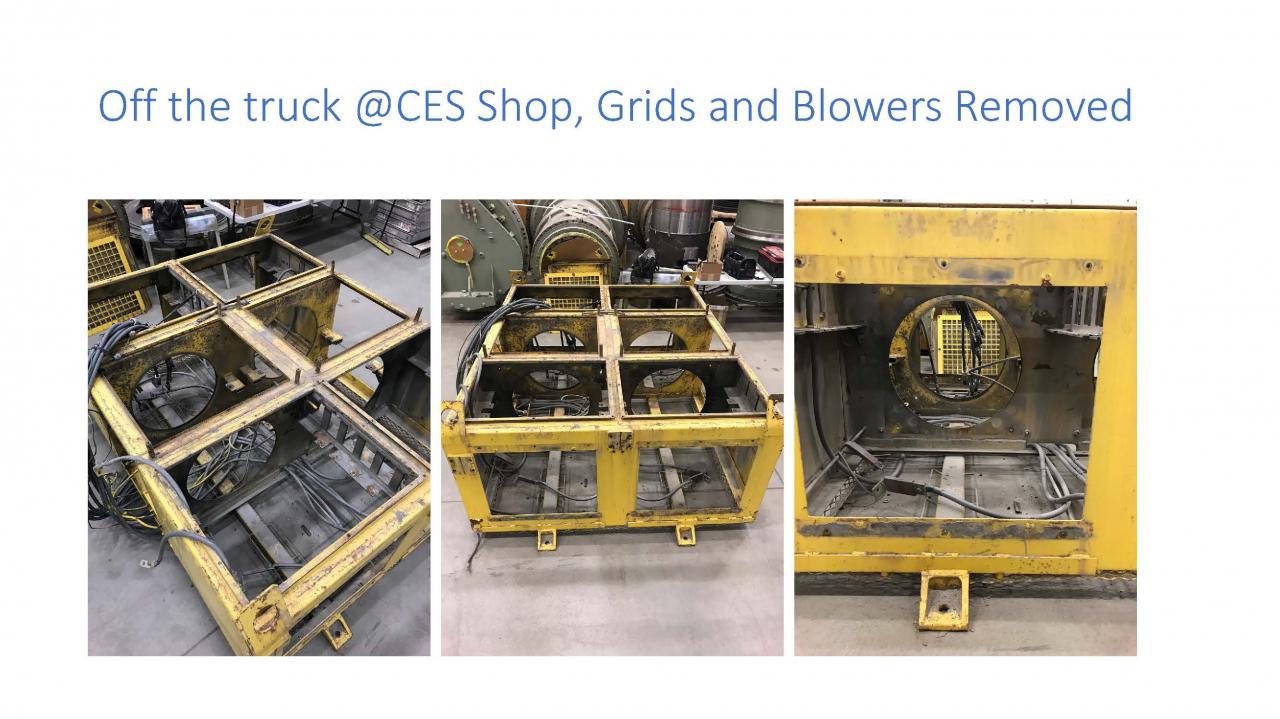

  • Initial condition with the grids and blowers removed.

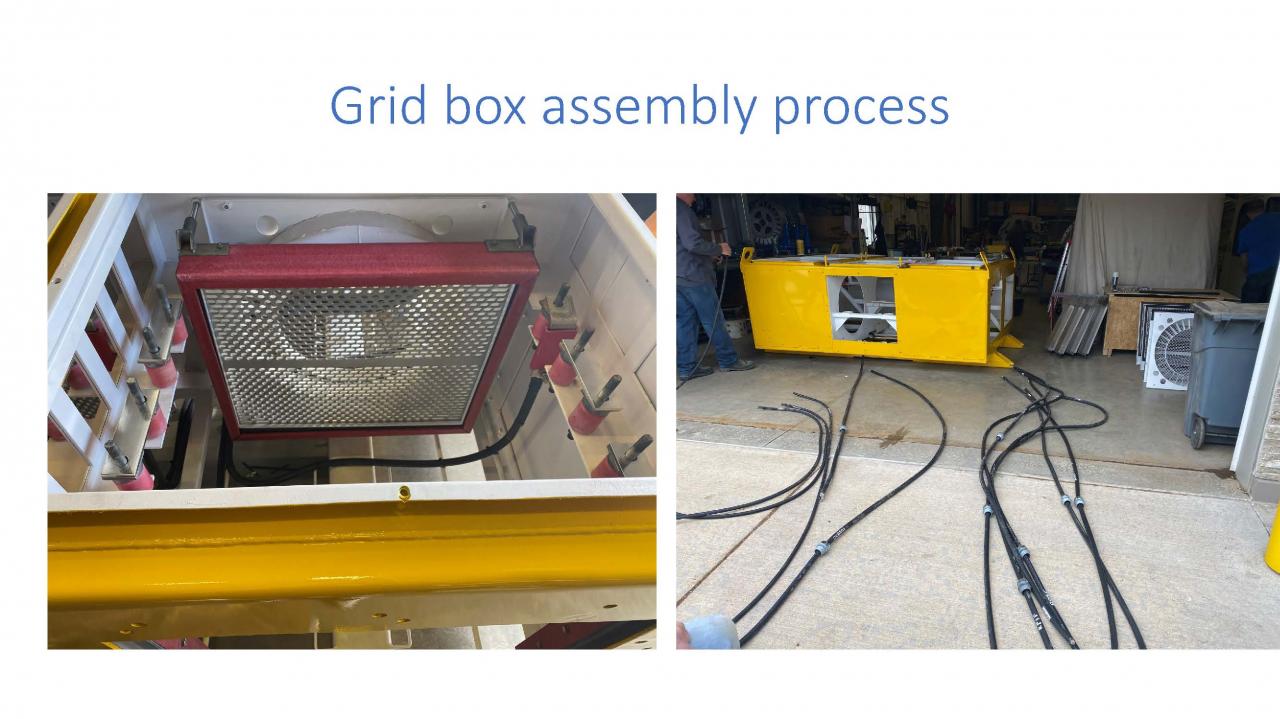

  • Grid box assembly process.

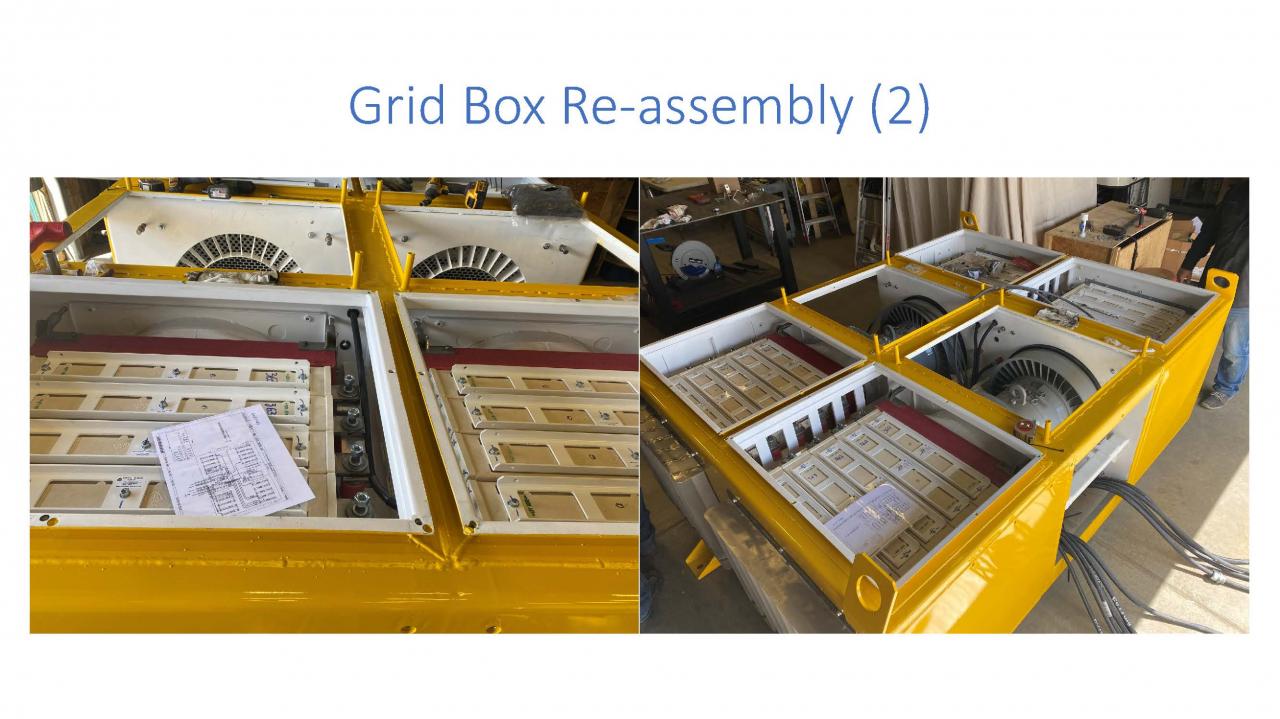

  • Grid box assembly process.

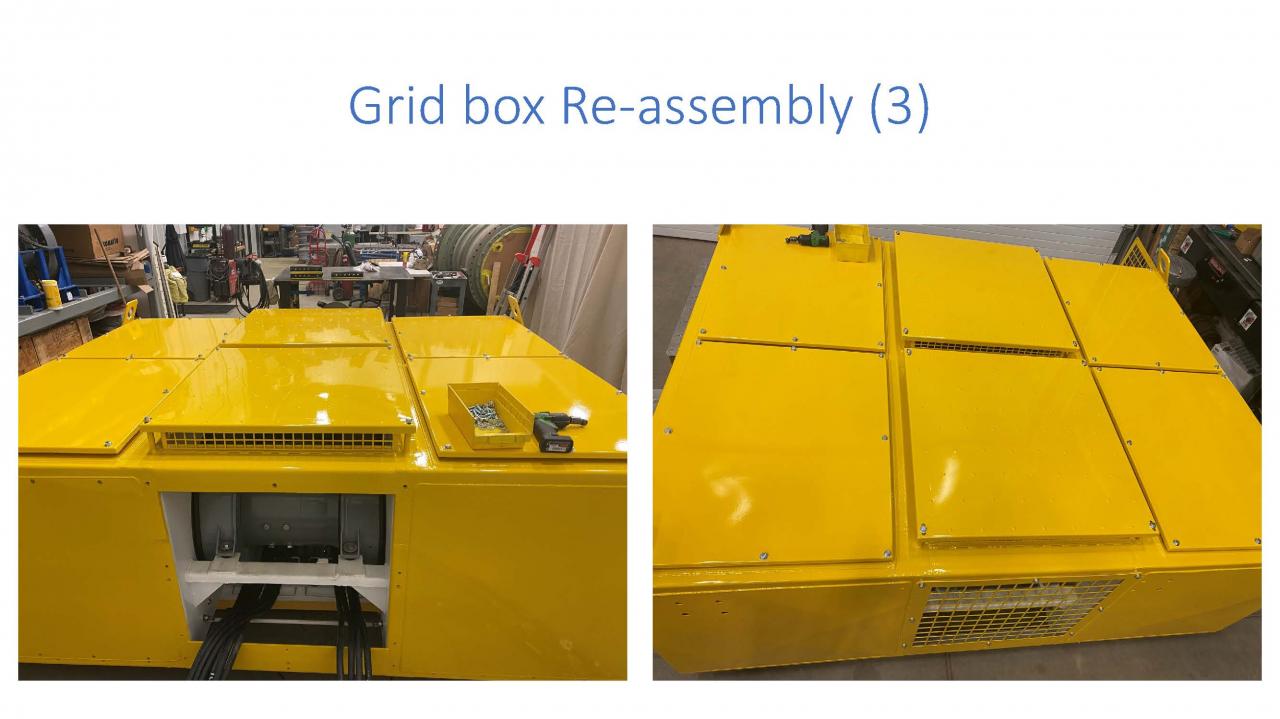

  • Grid box assembly process.

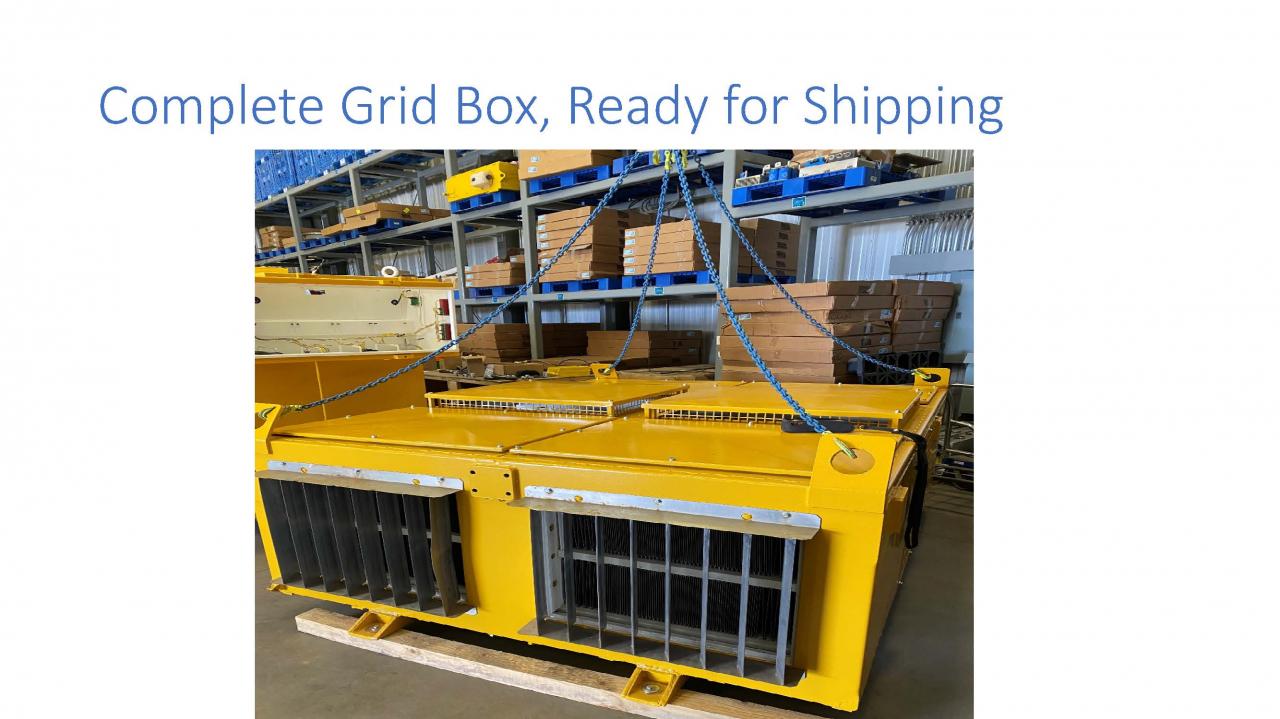

  • Completed refurbished grid box.

In the above photos, you will see a timeline of a complete grid box refurbishment project. Starting from the time we unload the customer supplied grid box off of the shipping truck, continuing into dis-assembly of the grid box, a thorough inspection and condition report of all problem areas, refurbishment of the grid box components, re-assembly of the grid box components and finally a completely refurbished grid box that has been tested and verified by one of our experienced technicians.
